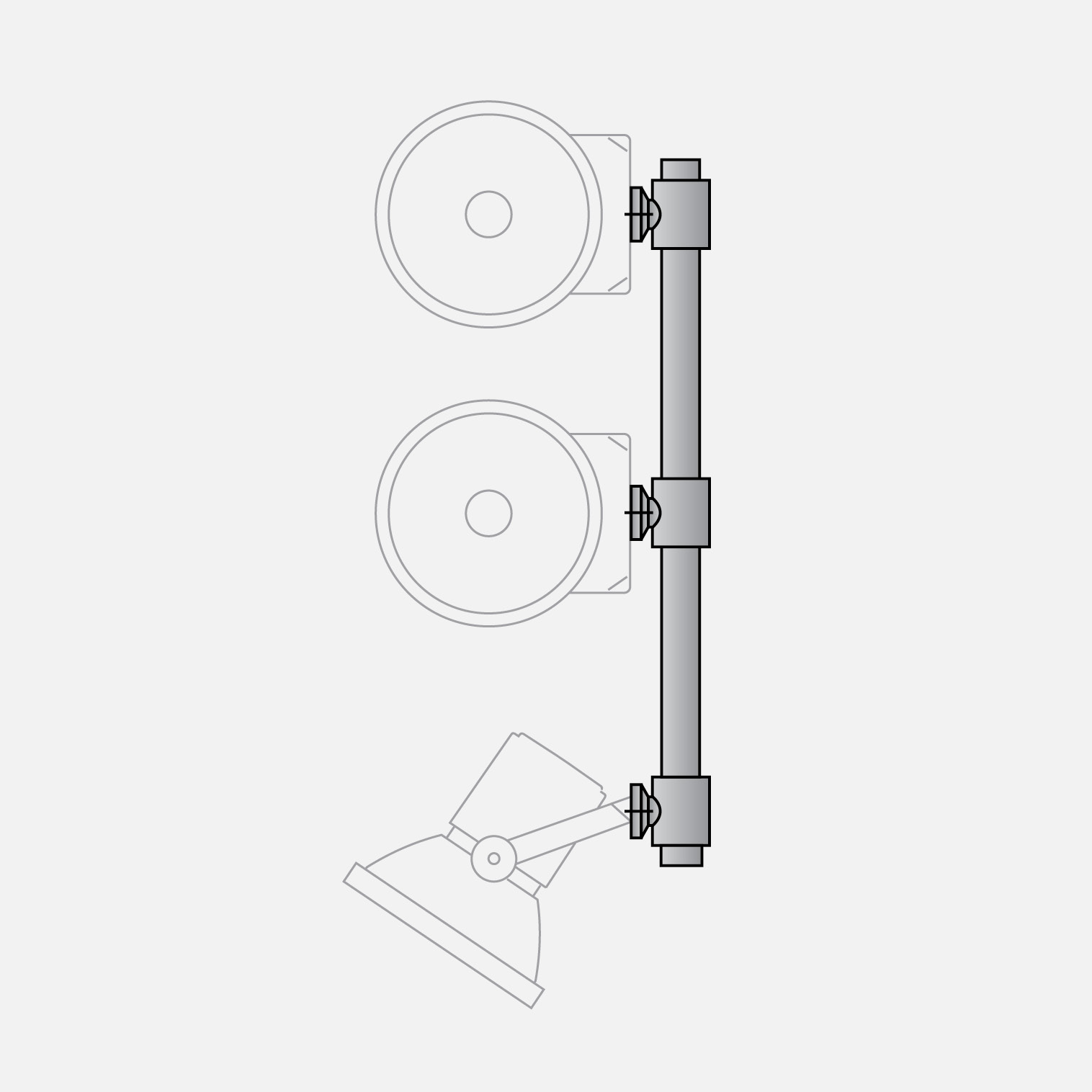

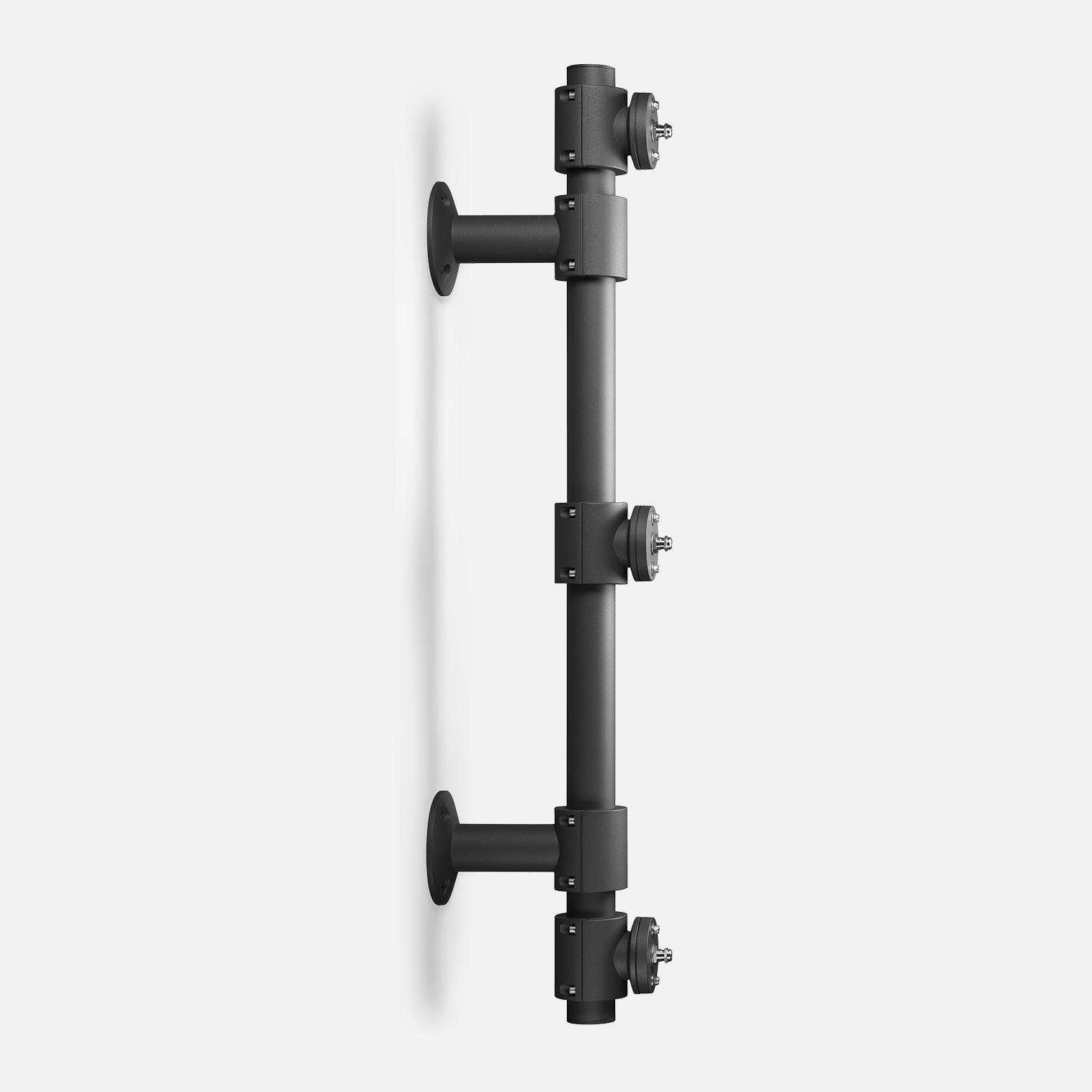

Cross beam for multiple floodlights for use with yoke mounted floodlights
Cross beams can be mounted on walls, support structures, and under ceilings. When installed on the ground, they can either be mounted on a foundation or anchorage unit. Anchorage units are accessories and must be ordered separately. The cross beam mounts to the wall with two, individual, heavy-duty aluminum die castings with mounting flange. Floodlights are attached to the cross beam with a rotatable, die cast aluminum clamping plate. The plates can be rotated on the cross beam in 90° increments and have a 1/2" threaded cord seal for cable entry. Floodlights can be rotated a full 360° on the clamping plate for precise aiming. The cross beam is equipped with three (3) or six (6) exit cable glands to cleanly route cables out of the cross beam. Removable, fully gasketed, cover plates are provided for access inside the cross beam.
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.
