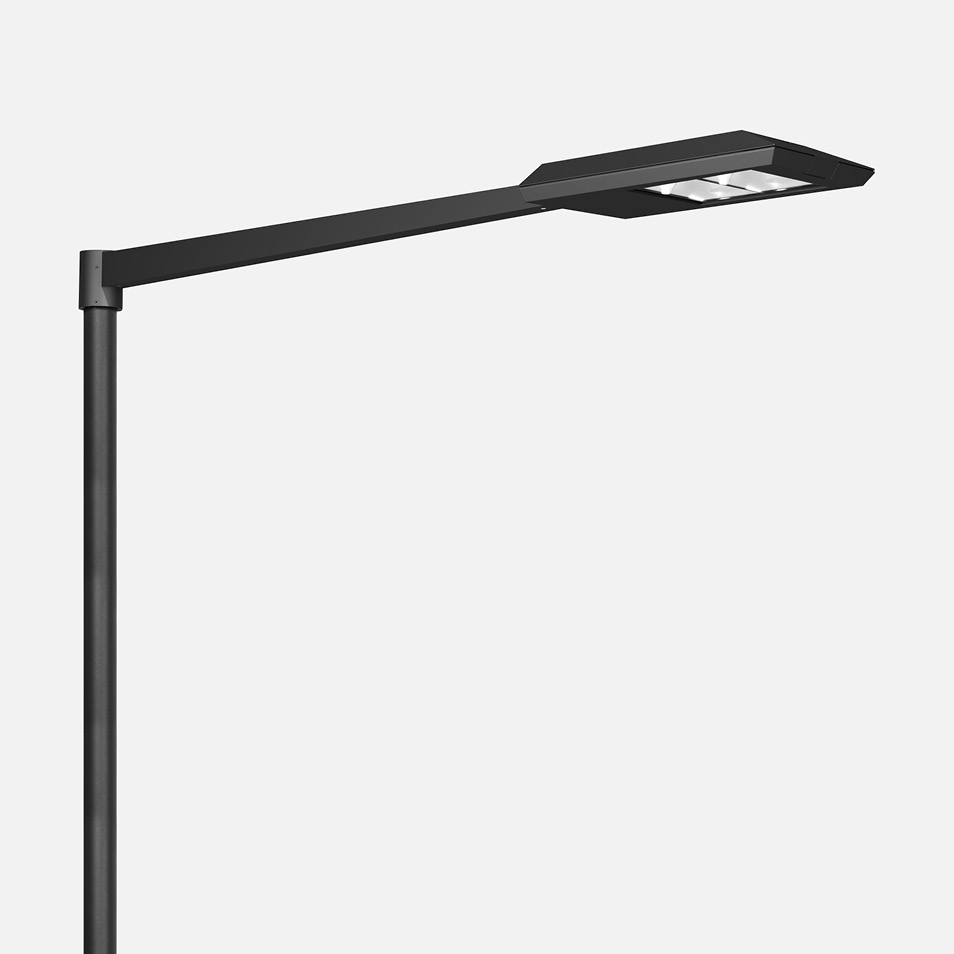

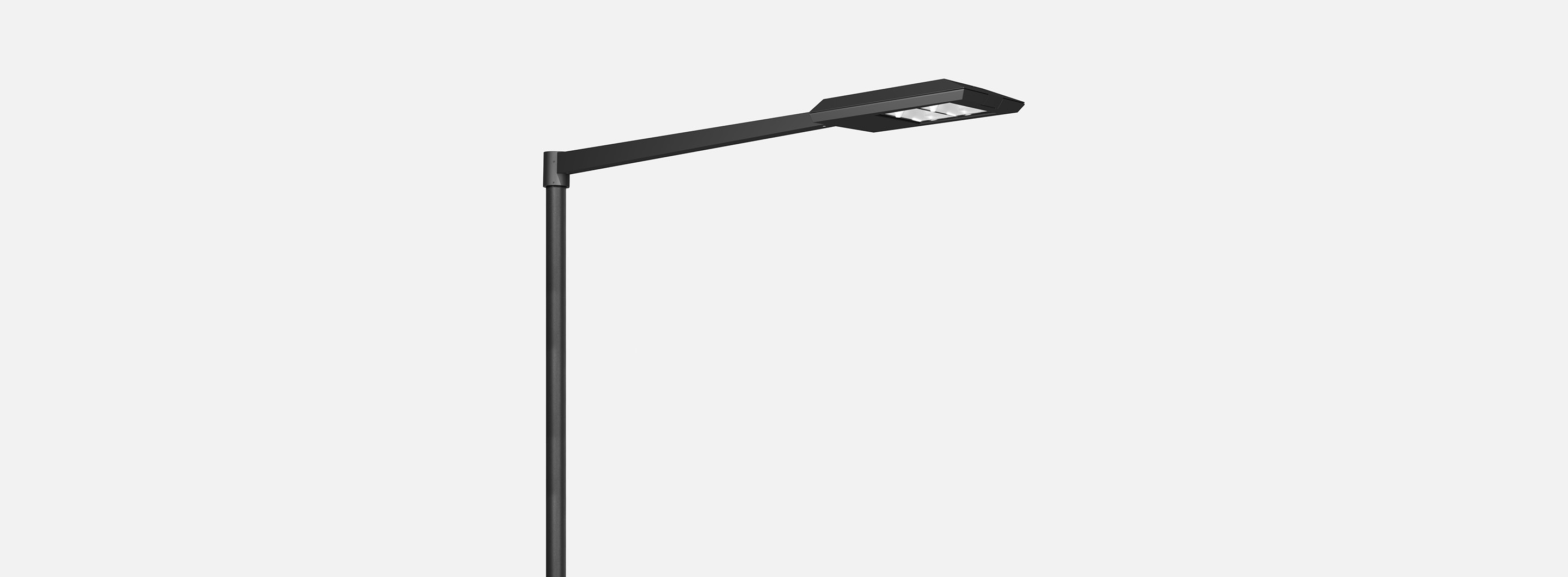

Area/Roadway luminaire

• 480V - Operating voltage
• FSC - Fusing
• MGU - Marine grade undercoat
• CUS - Custom finish
• RAL - RAL finish
• AMB - Amber LED
• IMS-L2 - Integral motion sensor (48' ⌀ coverage at 8' AFG)
• IMS-L3 - Integral motion sensor (40' ⌀ coverage at 20' AFG)
• IMS-L4 - Integral motion sensor (60' ⌀ coverage at 40' AFG)
• IMS-L7 - Integral motion sensor (100' ⌀ coverage at 40' AFG)

• FS IR-100 - Handheld configuration tool

• 20 RFTS1 Aluminum pole | Fixed base | Round fixed tapered | 240"
• 20 RHNS1 Aluminum pole | Hinged Base | Round hinged non-tapered | 240"
• 20 RHTS1 Aluminum pole | Hinged Base | Round hinged tapered | 240"
• 98 526 Wooden pole | Square straight | Square straight | 239 ⅞"
• 30 RFNS1 Aluminum pole | Fixed base | Round fixed non-tapered | 360"
• 98 520 Wooden pole | Square tapered | Square tapered | 239 ⅞"
• 20 RFNS1 Aluminum pole | Fixed base | Round fixed non-tapered | 240"
• 25 RFNS1 Aluminum pole | Fixed base | Round fixed non-tapered | 300"
• 25 RFTS1 Aluminum pole | Fixed base | Round fixed tapered | 300"
• 98 514 Wooden pole | Round straight | Round straight | 239 ⅞"

Downloads

• Spec sheet
• IES files
• Photometric summary
• Submittal drawing (DXF)
• Submittal drawing (PDF)
• Revit BIM model
• Installation instructions
• Download all
• EPD Area-Roadway Luminaire.pdf
• Estimated Lead-Time
