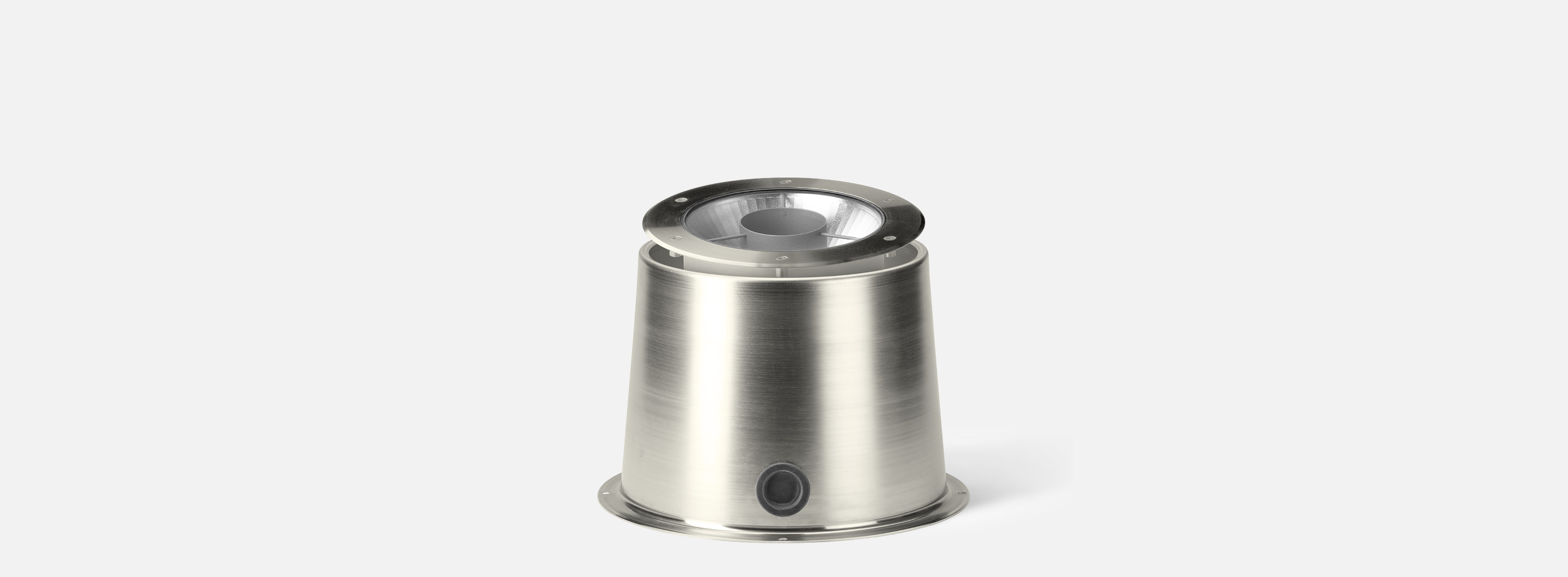

Product Banner

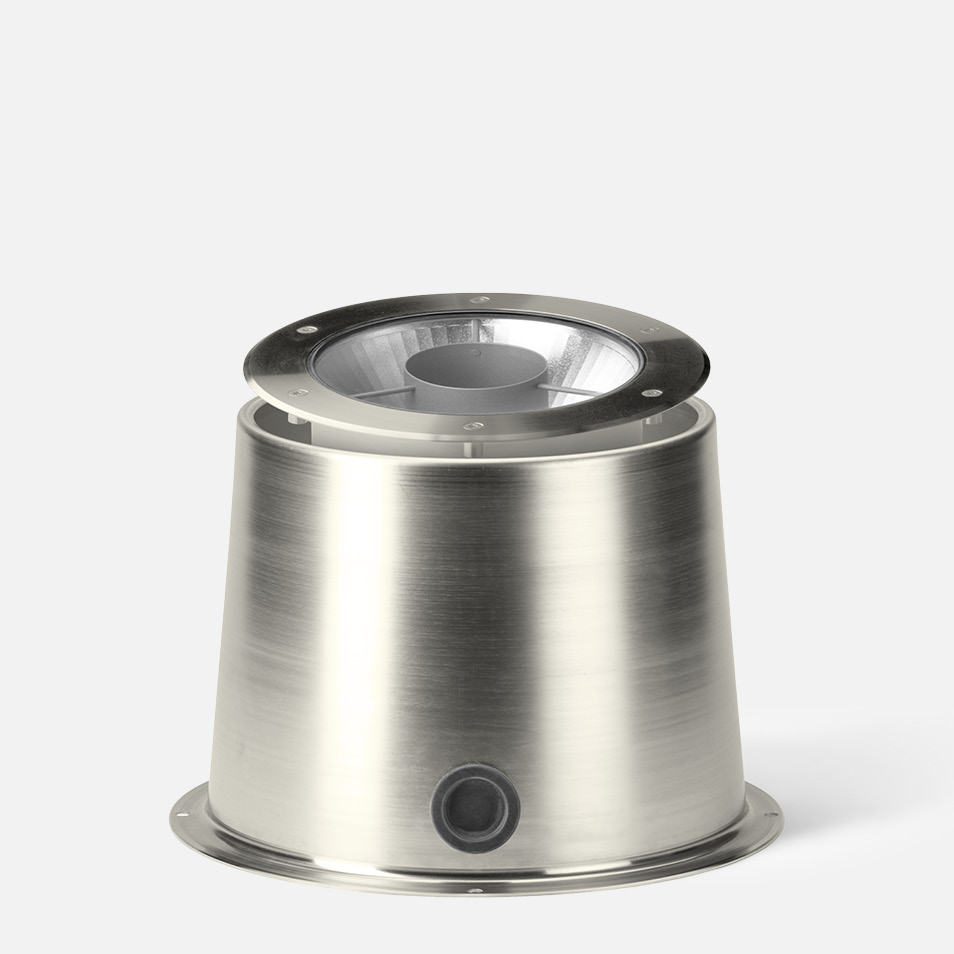

In-grade luminaire

Symmetric
Symmetric
  LED     β A B C
77 007 13.9W 970 lm 16°
9 ⅝
12 ¼
8 ¼
Options
  • NSL - Non-skid lens
  • FSC - Fusing
Included (available for pre-shipment)
  • B687 - Installation housing

Downloads

  • Spec sheet
  • IES files
  • Photometric summary
  • Submittal drawing (DXF)
  • Submittal drawing (PDF)
  • Revit BIM model
  • Installation instructions
  • Download all
  • Estimated Lead-Time

In-grade luminaire
Symmetric

In-grade symmetric floodlight luminaires. These luminaires are designed to bear pressure loads up to 4400 lbs. from vehicles with pneumatic tires. The luminaires must not be used for traffic lanes where they are subject to horizontal pressure from vehicles braking, accelerating and changing direction.

2700K (K27), 3000K (K3), 3500K (K35), 4000K (K4)

#4 brushed stainless steel. Custom colors are not available.

NRTL listed to North American Standards, suitable for wet locations

IP 68
