System bollard tube

Integral 240V receptacle

						A	B
98 010						10 ⅜	39

Options

MGU - Marine grade undercoat
RAL - RAL finish
CUS - Custom finish
70896 - Direct burial anchorage (replaces included anchorage kit, pre-shippable)

Included (available for pre-shipment)

B79818 - Anchorage kit

Downloads

Spec sheet
Submittal drawing (DXF)
Submittal drawing (PDF)
Installation instructions
Download all
Estimated Lead-Time

Technical Specs

System bollard tube
Integral 240V receptacle

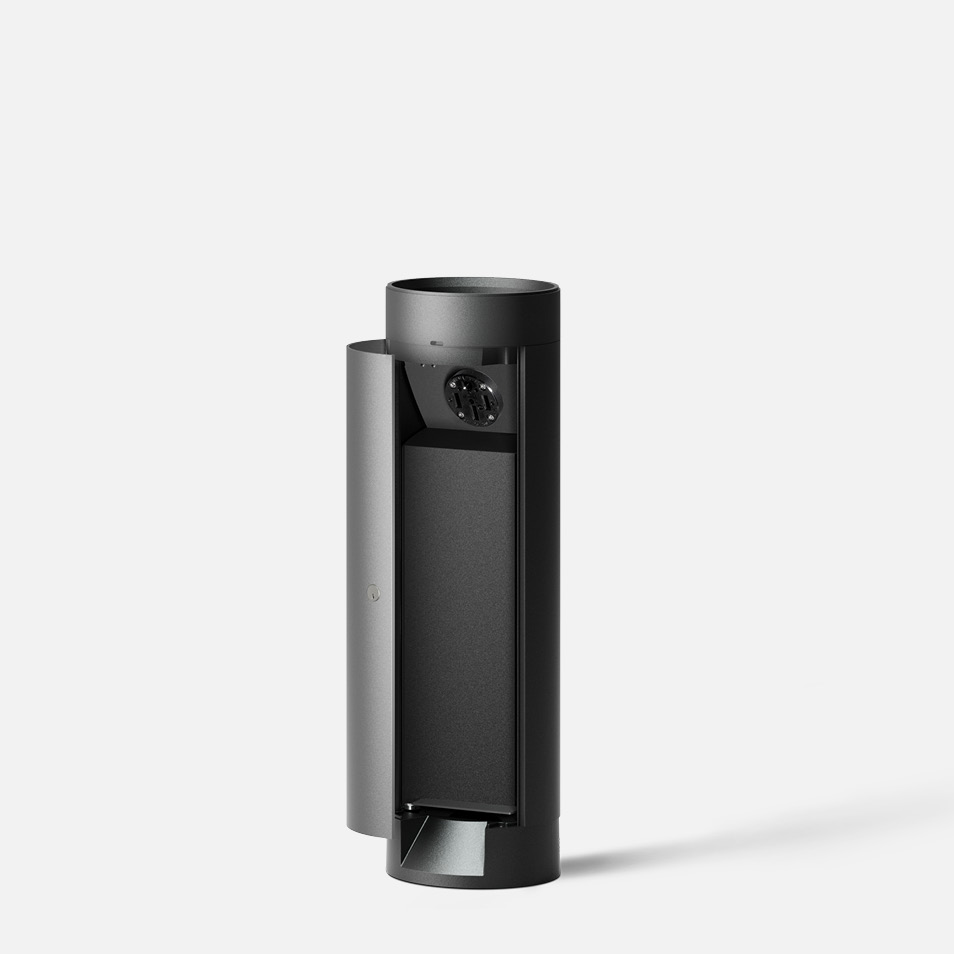

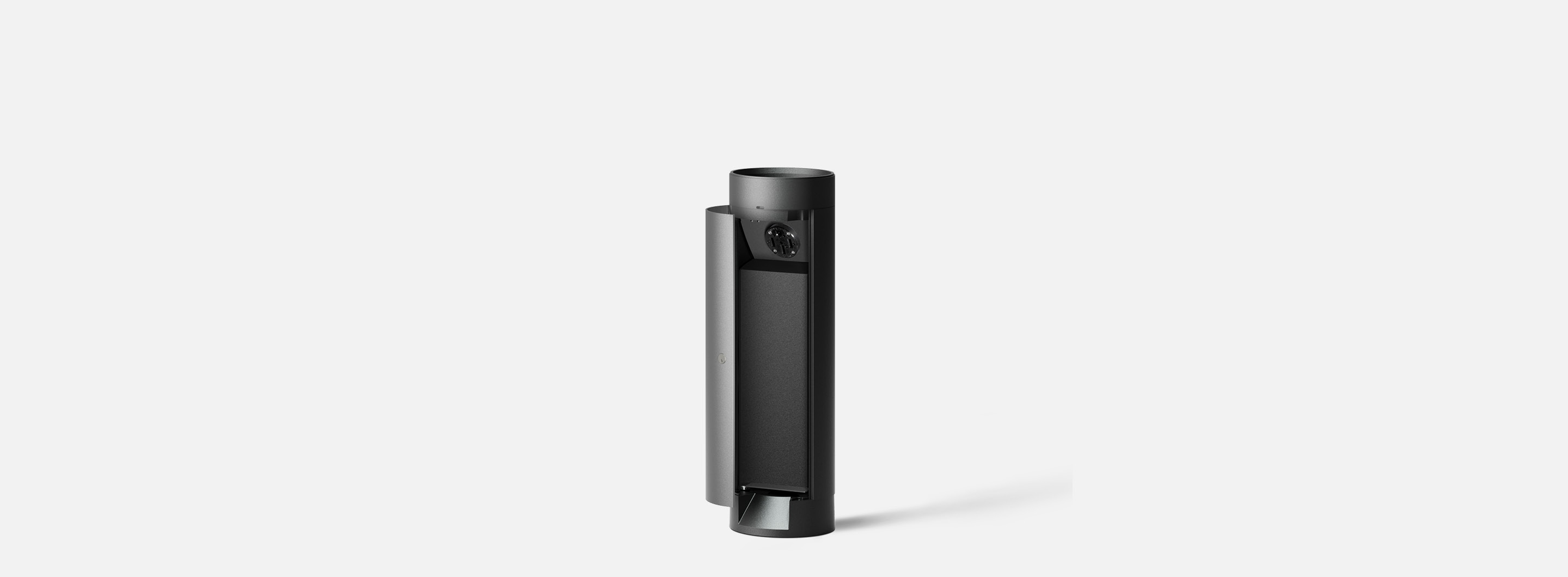

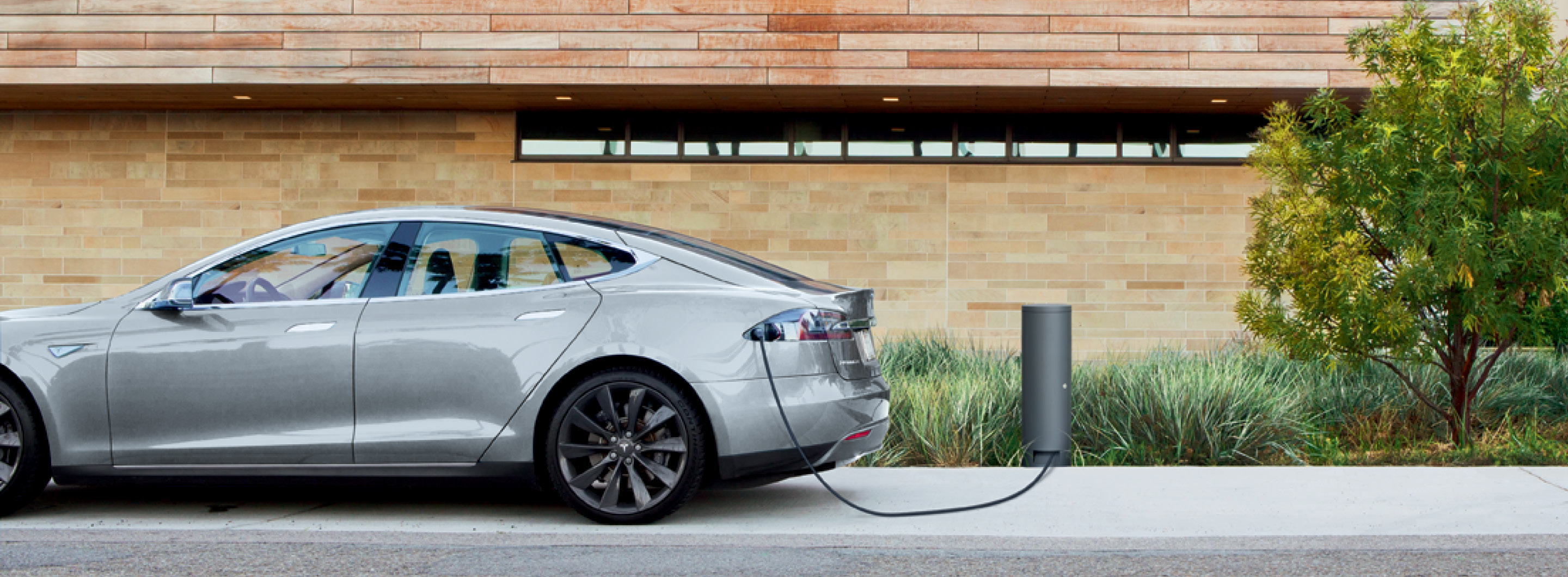

Bollard tube provided with integrated 240V NEMA 14-50R power receptacle for electric vehicle charging behind lockable door, safety lock with two keys. BEGA system bollard tubes are designed for easy attachment to system bollard heads using an interlocking mechanism. An accompanying bollard head must be selected for proper installation.

All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.

NRTL listed to North American Standards, suitable for wet locations

IP 65
