External motion sensor External motion sensor

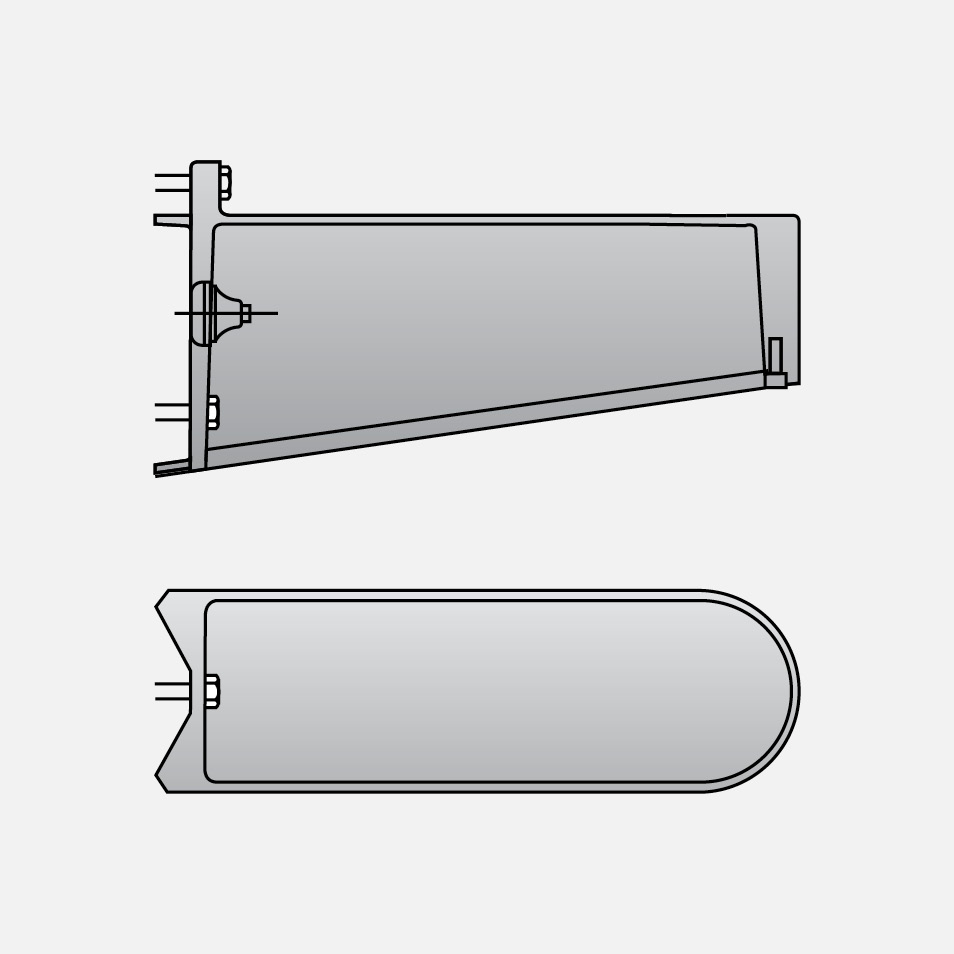

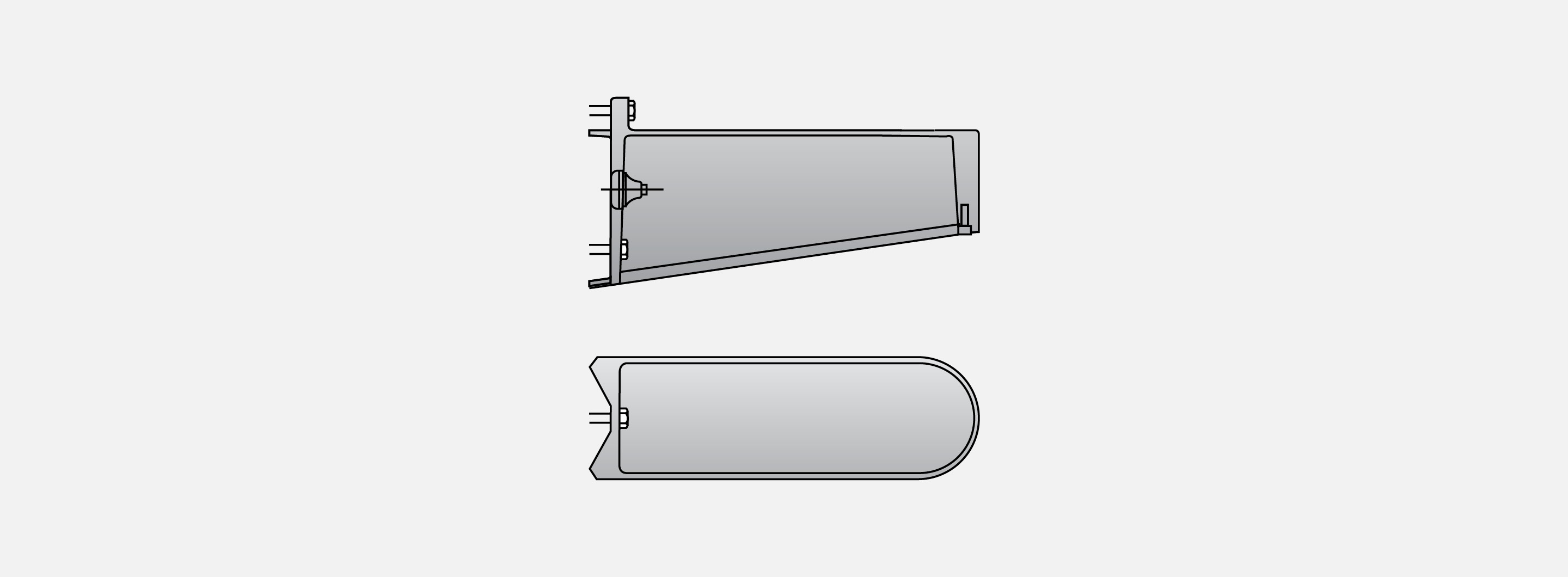

The EMS-L3 motion sensor provides multilevel lighting control based on motion. The EMS-L3 provides a maximum coverage of 40‘ diameter 360° coverage at 20‘ mounting heights. The EMS-L3 motion sensor unit is mounted inside a pole mount arm for attachment to BEGA poles for use with BEGA LED 0-10V dimmable pole top luminaires. The sensor ramps lighting ON to 100% light output when motion is first detected. After the sensor stops detecting movement and the 5 minute time delay elapses, lights fade to 10% light output. If there is no motion during the subsequent 1 hour cut off time delay, the lights will turn off. Any time the sensor detects motion after it has dimmed to 10% or off, it will ramp the light level back to 100%. Desired subsequent sensor adjustments are made using a handheld configuration tool (FSIR-100). This tool enables adjustment of parameters including high and low light levels, motion sensitivity, time delay, and cut off time. The wireless tool stores up to five sensor parameter profiles to speed configuration of multiple sensors. The FSIR-100 is sold separately.
All BEGA standard finishes are matte, textured powder coat with minimum 3 mil thickness. BEGA Unidure® finish provides superior fade protection in Black, Bronze, and Silver. BEGA standard White is a super durable polyester powder. Optionally available RAL and custom color finishes provided in either polyester powder or liquid paint.
